…The AutoCAD 2017 PDF Import command
…Copying nested objects within a block
…“Best of”: The Wipeout object and Irregular Viewport Frames

And for those of you who would like the last 14 years in book form (or PDF), YES, I am currently updating The AutoCAD® Workbench to include 'em all. The AutoCAD Workbench, Final Edition will be updated to A2017 and will, “Lord-willing and the creek don't rise”, be out by early Fall as the last Michael's Corner is posted.

[Ah, and even though my contribution of Michael's Corner is coming to an elegant end, I'll not be retiring anytime soon. My training around the planet will continue. I'm having waaaaay too much fun seeing my friends and customers and meeting new ones.]

Happy Spring!

If you would like to contact me directly, you can do that also.

Blessings to one and all,

The Big Dog in A2017

PDF Import on the RibbonThere are some pretty nice features in AutoCAD 2017, but I think my corporate Facilities customers will consider PDF Import to be a lifesaver, since they are frequently on the receiving end of PDF floorplans.

PDF Import from the command line

This will just be an introduction to the feature. The command's Help window covers all the details.


  • PDFIMPORT can be used on DWGs with PDF Underlays already attached, or the default option is to select a File (PDF) to import.

  • They have yet to perfect the recognition of text objects. I participated in a Beta review where text was recognized in some cases, and in others it wasn't. Stay tuned.

  • Once the command is complete, you may want to consider running Delete Duplicate Objects. See Michael's Corner, March 2012.

Import PDF dialogue box

How to Import a PDF File Into the Current Drawing

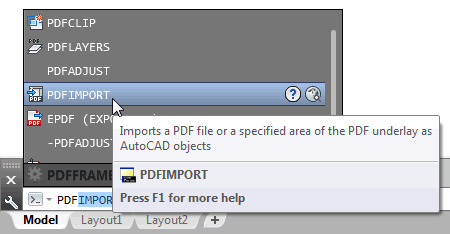

  1. You can launch this feature from the Insert tabPDF Import, or just type it.

  2. Press [Enter] for the File option, then navigate to, and select the PDF, then click Open.

    Note: If you have a location where you typically save PDF files, you can specify that path with the Options button at the bottom of the Import PDF dialog box.

    Options button

  3. The defaults work fine on the half dozen PDF files I tried this on. Here's the Help info on Layers:

    Use PDF layers
    Creates AutoCAD layers from the layers stored in the PDF file, and applies them to the imported objects. The layer names have a PDF prefix. If no layers are present in the PDF file, object layers are created instead.

    Create object layers
    Creates AutoCAD layers for each of the following general types of objects imported from the PDF file: PDF_Geometry, PDF_Solid Fills, PDF_Images, and PDF_Text.

    Solid Fills

    Current layer
    Imports all specified PDF objects to the current layer.

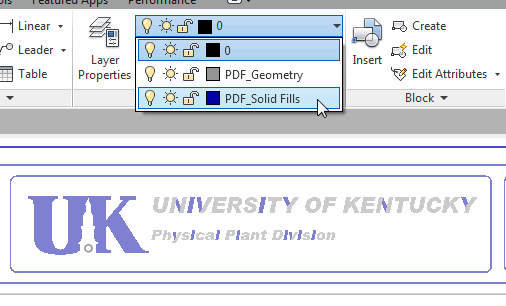

    Note: Keep the box checked for Solid fills. Presently, what appears to be TrueType fonts are, shall we say ‘randomly’ recognized as either fills or Hatch objects. In the image, notice that only certain strokes of the letters are on the PDF_Solid Fills layer.

How to Use PDFIMPORT on a PDF in the Drawing

  1. Creating a windowYou can launch this feature from the Insert tabPDF Import, or just type it.

  2. Select the PDF object and you get the following prompt:

    Specify first corner of area to import or [Polygonal/All/Settings] <All>:

  3. In this illustration, I created a window around a portion of the attached PDF map. After creating the window, you get the following:

    Keep, Detach or Unload PDF underlay? [Keep/Detach/Unload] <Unload>: U
    Binding PDF file C:\CTG\CADTutor\ConAgra Campus Map.pdf, page 1 ...

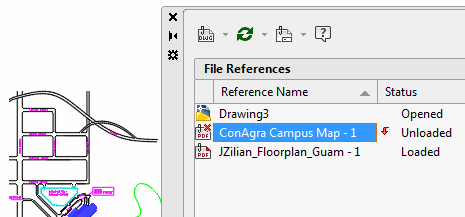

  4. Although it says, “Binding PDF file…” the Unload option technically unloads the referenced PDF and displays the condition in the External Reference Manager. Which means, yes(!), you can Reload that reference if need be.

    File References

Bottom Line

This is pretty fantastic. There are some shortcomings in recognizing text objects, but those are being worked on at this very moment. Unfortunately, Scan-to-PDF files are not able to be imported to AutoCAD geometry with this feature, no doubt due to their clarity… or lack thereof.

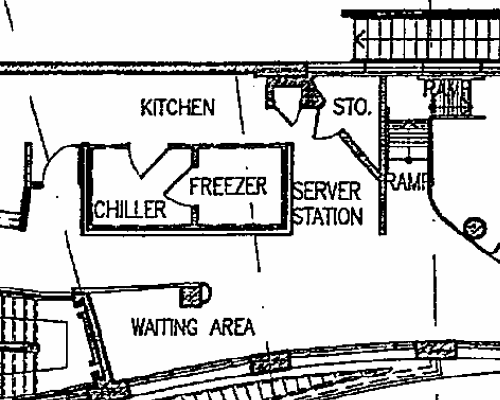

A scanned plan

Other than that, I think it's pretty wonderful that we now get layers, as well as recognition of lines, circles, and arcs.

Top of page

Power Tool

Copy Nested [Express Tools]

Copy nestedExpress Tools have some nice little routines like this Copy Nested Objects [NCOPY].


  • Standard COPY procedures apply.

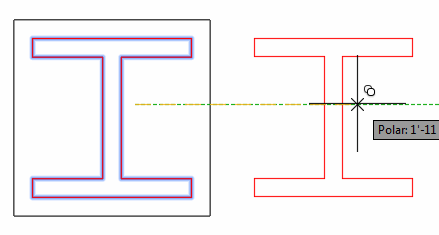

  • A polyline within a block/Xref retains its polyline definition (i.e., the copy is also a polyline).

  • A block within a block/Xref is not retained as a block. Only the selected geometry is copied.

    Nested block

  • If you want to copy a nested block from within another block, use the Block Editor [Home tabBlock panelEdit] to open the selected block in the Editor, then use Ctrl + C to Copy the nested block. Close the Block Editor, then Ctrl + V to Paste the copied block. Simple but effective.

Top of page

The Odd Spot

“Best of” Odd Spot: Wipeout

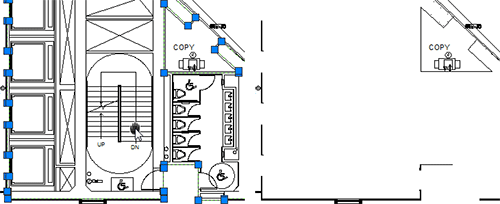

It's very powerful… but it will mess with your head if you're on the receiving end as shown in these two images. The left image is what they were expecting… and the right image is what they were seeing!

Drawing before and after Wipeout

Wipeout in actionOnce I received their drawing, I used the Selection Cycling feature (see Michael's Corner, August 2012) and discovered the Wipeout object.

A practical application of the Wipeout object would be with Xrefs as originally presented in Michael's Corner, February 2006, and you'll find another application for it in Michael's Corner, February 2008, when drawing reflected ceiling plans.


  • If you move your cursor over an empty area, and something highlights, you probably have a Wipeout object.

  • In the Wipeout command, there's an option to show the Wipeout object's frame, but not plot it.

    Command: WIPEOUT
    Specify first point or [Frames/Polyline] <Polyline>: F
    Enter mode [ON/OFF/Display but not plot] <OFF>: D

  • Some people will put a wipeout object under text rather than use Background Mask in Mtext. If that's the case, and the text is in a block, use Block Editor to edit the block definition.

    Wipeout object

And if you're using a Wipeout object in your drawing, be nice and let other folks know what's going on, especially others outside your company to whom you send your drawings. “Do unto others”, and all that.

Top of page

The Basics

“Best of” Basics: Irregular Viewport

When you need a viewport shape other than a rectangle, the first order of business is to be able to view the objects in Model Space at the desired scale. From there, you can create a polyline to essentially ‘crop’ the objects in Model space, then turn it into a viewport.

Setting the scaleThe best drawing for testing this is in the path

C:\Program Files\Autodesk\AutoCAD 20xx\Sample\Database Connectivity

If you have AutoCAD 2014 or prior, the drawing name is db_samp.DWG

If you have AutoCAD 2015 or later, the drawing name is Floor Plan Sample.DWG

Sample drawing with polyline

How to Create an Irregular Shaped Viewport

  1. Right-click on a layout tab and make a new layout with a large viewport.

  2. Double-click in the viewport, then set the desired scale from the scale list on the Status bar. You may want to start with 1/64″ = 1′-0″ so you can see all of it.

  3. Return to Paper space and create any closed polyline, spline or circle to be the viewport.

    Note: If you are creating a Polyline, you must use the Close option if it is to be converted into a viewport. If you did not use the Close option, use Pedit and select the polyline, then use the Close option.

    In this illustration, I created a polyline around the perimeter of the floorplan. (Ideally, this would be on a dedicated layer on which you typically create your viewports).

  4. ClipOn the Layout tab, click Clip.

  5. When prompted to select the ‘viewport to clip’, select the rectangular viewport.

  6. When prompted to select the ‘clipping object’, select the polyline (or whatever object you created in Step 3, above).

Sample drawing with irregular viewport

AutoCAD will convert the polyline into a viewport and erase the original rectangular viewport!
